Sandblasting & Abrasive blasting equipment

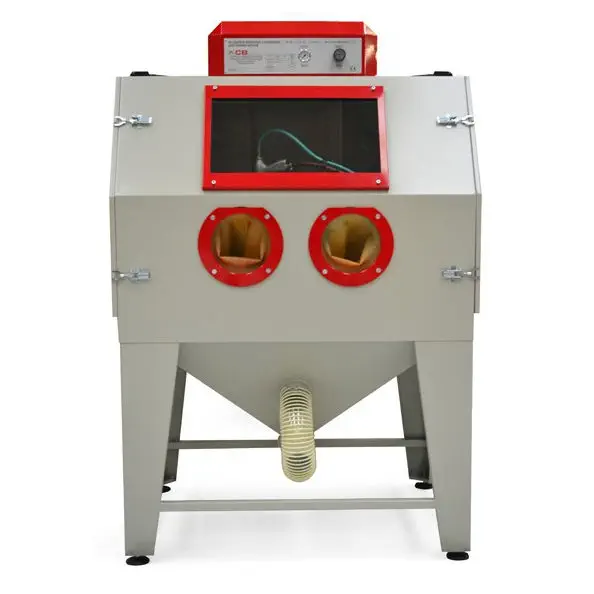

Suction blast cabinet CONTRACOR ECO-80S/100S/120S/140S (Germany)
BLAST CABINET, COMPLETE SYSTEM, CONSIST
- Cabinet Enclosure
- Cartridge Dust Collector DC-370
STANDARD DELIVERY:
- Quality 600 mm blast gloves with inner fabric lining
- Manual suction blast gun GX
- Tungsten carbide gun nozzle GXT- 8
- Metering valve
- Main airline filer with 5μ filtration grade
- Pilot regulated blast pressure
- Door safety interlocks
- Manual cleaned cartridge filter
Electrical connection: 0,50 kW, 380V, 3 phase, 50Hz
Noise level, 80 .. 120 dB (2000/14EC)
Standard load capacity, 350 kg
Pressure blast cabinet CONTRACOR ECO-80P/100P/120P/140P
Blast cabinet, complete system, containing:
- Cabinet enclosure
- 13 liter blast machine
- Cartridge dust collector DC-370
Standard delivery:
- Quality 600 mm blast gloves with inner fabric lining
- 13x27 mm blast hose with coupling/nozzle holder
- Tungsten carbide venturi nozzle NTC-5.0
- FSV-0 metering valve
- Main airline filer with 5μ filtration grade
- Pilot regulated blast pressure
- Door safety interlocks
- Manual cleaned cartridge filter
- Electrical connection 0,50 kW, 380V, 3 phase, 50Hz
Noise level, 80 .. 120 dB (2000/14EC)
Standard load capacity, 350 kg
Suction type cabinet CONTRACOR CAB-110S (Germany)
Technical parameters:
Internal work surface size(mm): 1100x800x840
External size(mm): 1220x1340x1990
Door opening (mm) 690x840
Window size (mm): 476 x 296
Cyclone/Separator R-350
*cyclone ensures repeated use of the abrasive material, cleaning it from dust, worn-out abrasive particles and by-products produced when cleaning the surface (rust, paint, etc.)
Filtering element 10m2
Pneumatic filter cleaner with programmable pulse and timer
Voltage 380V/1.2kW.
Suction type cabinet CONTRACOR CAB-135S (Germany)
Technical parameters:
Internal work surface size(mm): 1350x1100x1070
Outer size(mm): 1470x1700x2140
Door opening (mm) 1000x1000
Window size (mm): 476 x 296
Cyclone/separator R-350
Filter element 15m2
Pneumatic filter cleaner with programmable pulse and timer
Voltage 380V/1.6kW.
The cabin includes:
Pneumatic distance control with pedal
Cyclone for abrasive cleaning and dust removal to the filter
Abrasive dispenser
Compressed air line filter
Cabin interior lighting
Speed resistant gloves
Sandblaster GX
Additional equipment:
- 35x35cm hatches in the side door, for blasting parts of non-standard length,
rubber lining inside the cab
- Sandblasting gun GA with bracket, for mounting on the cabin ceiling (for hands-free blasting)
- rotating table inside the cabin diameter 50cm (CAB-110S) / diameter 80cm (CAB-135S)
Ejection type gun for GX sandblasting booth, complete with boron carbide nozzle:
- 6mm (air consumption 560l/min)
- 8mm (air consumption 800l/min)
- 10mm (air consumption 1200l/min)
*the service life of the nozzle when working with sand is 1000 hours
Increased power ejection type gun for GA sandblast booth, complete with boron carbide nozzle:
- 6mm (air consumption 560l/min)
- 8mm (air consumption 800l/min)
- 10mm (air consumption 1200l/min)
*the service life of the nozzle when working with sand is 1000 hours
